MODEL |

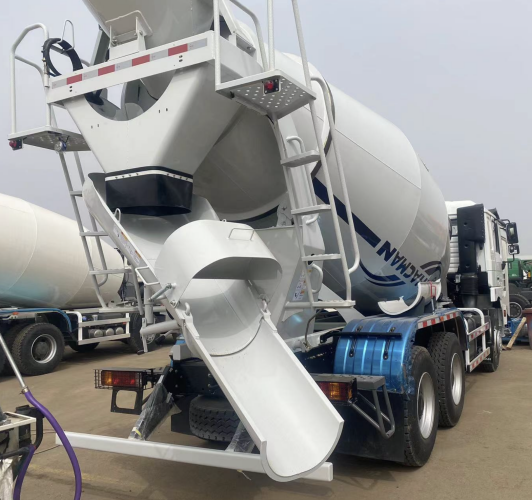

SX5225GJBJR334, F2000 6X4 Concrete Mixer Truck |
|
|
Left Hand Drive |
|
Driving type |
6×4 |
|
Curb weight |
12500kg |
|
Overall Dimension |
8500×2490×3950mm (technology) |
|
Wheelbase |
3350+1350mm |
|
Max. Grade ability |
30 |
|
Engine |
Model |
WEICHAI WP10.340E32 |
Emission Standard |
EURO-Ⅱ |
|
Rated output power |
340HP@2200rpm |
|
Max.Torque |
1160N.m/1200~1600r/pm |
|
Displacement |
9.726L |
|
Transmission |
model |
FAST RTD11509C with QH50 PTO, Manual, 9F/1R |
Front axle/Middle axle |
Model |
MAN 7.5T |
Rear axle |
Model |
2×13T double reduction axle, ratio 4.769 |
Clutch |
¢430 diaphragm clutch |
|
Steering |
ZF technology, left hand drive |
|
Frame |
850×300(8+7)Double layers frame, stronger type |
|
Suspension |
multiple leaf springs front and rear/Four main spring + four bolts |
|
Fuel tank |
380L tank |
|
Wheels and tires |
12R22.5 Tubeless tire |
|
ABS |
With ABS |
|
Cabin |
F2000 flat roof cabin/one sleeping bed/hydraulic driver seat/ four-point hydraulic suspension cab/ A/C / metal bumper |
|
Body/Bucket |
8M3/9M3 Mixer tank volume, with Italy brands pump, motor and reduction |
